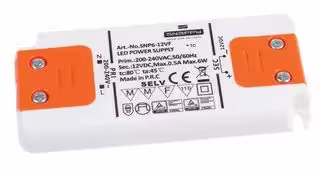

SNP6-12VF

## _**LED POWER SUPPLY DATASHEET**_

## _**SNP6-12VF**_

## _**·DESCRIPTION**_

_Super slim LED drivers,SELV.Open circuit, short circuit,overload and over temperature protection.Compliance to ERP directive,lifetime 30,000hrs._

## **·Input**

|**·Inputputut**||||
|---|---|---|---|
|**Items**|**Conditions**|**Request**|**Note**|
|Input voltage|Ta|200-240Vac|--|
|Input frequency||50/60Hz|--|
|Input current|25℃,rated input voltage,<br>output with max. rated power|＜0.1A|--|
|Input power||<10W|--|
|Efficiency||≥70%|--|
|Standby|25℃,rated input voltage,<br>output without load|＜0.5W|average|
|Inrush current|25℃,rated input voltage|＜60A|peak|
|PF|25℃,rated input voltage,<br>output max. rated power|≥0.50|--|



## **Temperate and others**

|**Item**|**Conditions**|**Request**|**Note**|
|---|---|---|---|
|Operation temp.|--|-20℃~45℃|--|
|Relative humidity|--|45%-85%|--|
|Max. case temp.|--|80℃|＜90℃|
|Lifetime|Max.Ta,rated input voltage,output with<br>max.rated power|30,000hr|--|
|Working noise|25℃,rated input voltage,output with rated<br>power ,mute box background<br>noise<35dB,pickup 10cm distance from<br>products|＜35dB|--|



## **·Protection**

## **·Output**

|**Items**|**Conditions**|**Request**|**Note**|
|---|---|---|---|
|Startup time|25℃, rated input<br>voltage,output with max. rated<br>power|<2S|--|
|Output voltage and<br>precision|Ta , rated input voltage,<br>output with rated power|12V±5％|＜14V|
|Output current range|Ta ,rated input voltage|0-0.5A|--|
|Output voltage wave|25℃, rated input<br>voltage,output with max. rated<br>power|＜240mV|Vp-p|
|Output overload|power<br>25℃,rated input voltage,output<br>with 2 times LED load|yes|--|
|Output current and<br>precision|Ta , rated input voltage,<br>output with rated power|--|--|
|Rated output voltage range|Ta , rated input voltage,|--|--|
|Output current wave|25℃, rated input<br>voltage,output with max. rated<br>power|--|Ip-p|
|Dimming mode|--|--|--|
|Dimming range|--|--|--|



## **·Mechanical, mounting**

|**·Mechanical, mounting**||
|---|---|
|**Items**|**Conditions**|
|Case material and size|Plastic L98.5*W45.6*H10.7mm|
|Mounting ways|Independent|
|Insulation type|Class II|
|IP grade|IP20|
|Input cables dimension|H03VVH2-F 2×0.75mm²|
|Output cables dimension|H03VVH2-F 2×0.75mm²|
|Output cables length|Max. 2 meters|



|**Items**|**Conditions**|**Request**|**Note**||||
|---|---|---|---|---|---|---|
|Open circuit|Ta, rated input voltage, no load|--|--||**·Standard**||
|Over load|Ta ,0.94-1.06 times of input voltage, 2.3<br>times of rated power|yes|--||**Items**|**Conditions**|
|Short circuit|Ta ,0.94-1.06 times of input voltage|yes|--||||
||Ta ,0.94-1.06 times of input voltage,||||Safety|IEC61347-1,IEC61347-2-13|
|Over temperature|temperature detected pointed more than|--|--||||
||115 degree||||||
|Over voltage|Ta ,0.94-1.06 times of input voltage,output<br>voltage is 1.5 times of rated one|--|--||Harmonic|IEC61000-3-2|
|Auto recovery|Over load, short circuit revocation|yes|--||EMI|IEC55015|
|Latch off|Over heat re-start after cut off|--|--||EMS|IEC61547|



Tiger Power Supplies          W: www.TigerPowerSupplies.com         E: info@TigerPowerSupplies.com

**==> picture [53 x 7] intentionally omitted <==**

**----- Start of picture text -----**<br>
 Dimensions(mm)<br>**----- End of picture text -----**<br>


**==> picture [97 x 7] intentionally omitted <==**

**----- Start of picture text -----**<br>
                   Wiring Diagram<br>**----- End of picture text -----**<br>
