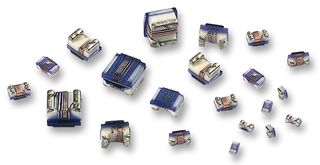

Illustrative purposes only
74476032C
Wirewound Inductor, 470 nH, 2.3 ohm, 375 MHz, 250 mA, 0805 [2012 Metric], WE-KI
⚠️ Given the current worldwide supply chain situation, we kindly ask you to take the information shown as a guideline.
- Manufacturer: WURTH ELEKTRONIK
- Product type: Wirewound Inductors
- Product variants: No other variants available. No other names.
- Inductance: 470nH
- Core Material: Ceramic
- Product Range: WE-KI
- Product Width: 1.7mm
- Product Height: 1.28mm
- Product Length: 2.28mm
- DC Current Rating: 250mA
- DC Resistance Max: 2.3ohm
- Inductor Case Style: 0805 [2012 Metric]
- Inductance Tolerance: ± 5%
- Inductor Construction: Unshielded
- Inductor Case / Package: 0805 [2012 Metric]
- Self Resonant Frequency: 375MHz
| Delivery and price | |
|---|---|
| Units per pack | 20000 |
| Price | 0.227 € |
| Current stock | 201 |
| Lead time | 7 days |
