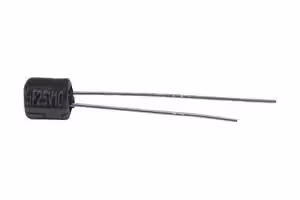

Image not available
Illustrative purposes only
EEUTP1E332S
Electrolytic Capacitor, 3300 µF, 25 V, ± 20%, Radial Leaded, 5000 hours @ 125°C, Polar
⚠️ Given the current worldwide supply chain situation, we kindly ask you to take the information shown as a guideline.
- Manufacturer: PANASONIC
- Product type: Leaded Aluminium Electrolytic Capacitors
- Capacitance:3300µF; Voltage Rating:25V; Product Range:-; Capacitance Tolerance:± 20%; Capacitor Terminals:Radial Leaded; Diameter:18mm; Lead Spacing:7.5mm; Height:25mm; Operating Temperature Min:-4
- ESR: 0.02ohm
- SVHC: No SVHC (25-Jun-2025)
- Polarity: Polar
- Capacitance: 3300µF
- Voltage(DC): 25V
- Lead Spacing: 7.5mm
- Product Range: TP Series
- Product Width: -
- Qualification: -
- Product Height: 25mm
- Product Length: -
- Ripple Current: 2.96A
- Product Diameter: 18mm
- Capacitor Terminals: Radial Leaded
- Capacitance Tolerance: ± 20%
- Lifetime @ Temperature: 5000 hours @ 125°C
- Capacitor Case / Package: Radial Leaded
- Operating Temperature Max: 135°C
- Operating Temperature Min: -40°C
| Delivery and price | |
|---|---|
| Units per pack | 500 |
| Price | 1.55 € |
| Current stock | 10+ |
| Lead time | 30 days |
Datasheet
|
|---|
