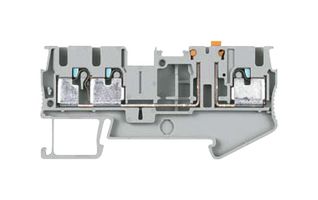

# DIN Rail Mount Terminal Block, Instrument Isolating, 3 Ways, 26 AWG, 12 AWG, 2.5 mm², Clamp, 20 A

![Product image](https://novapart.co/image/farnell:4008453/)

**URL**: https://novapart.co/products/8WH6003-6AF00/din-rail-mount-terminal-block-instrument-isolating
**SKU**: 8WH6003-6AF00
**Manufacturer**: SIEMENS
**Category**: Connectors || Terminal Blocks & Accessories || DIN Rail Terminal Blocks
**Price**: €3.4800
**Stock**: 50+
**Lead Time**: 36 days (indicative)

## Specifications

| Parameter | Value |
|---|---|
| Svhc | No SVHC (08-Jul-2021) |
| No. Of Levels | 1 |
| Product Range | ALPHA FIX Series |
| Rated Current | 20A |
| Rated Voltage | 400V |
| No. Of Positions | 3Ways |
| Wire Size Awg Max | 12AWG |
| Wire Size Awg Min | 26AWG |
| Conductor Area Csa | 2.5mm² |
| Wire Connection Method | Clamp |

## Datasheet

📄 [Download PDF](https://novapart.co/datasheet/farnell:4008453/)

**8WH6003-6AF00**

## **Data sheet**

||Terminal, iPo plug-in terminal, isolating terminal, 2.5 mm², gray|
|---|---|
|**Model**<br>~~|~~||
|**product brand name**<br>~~|~~|SENTRON<br>~~|~~|
|**product designation**|Terminal blocks|
|**design of theproduct**<br>~~Oe~~|iPo isolatingblade terminal<br>~~Oe~~|
|**type of longitudinal separation**<br>~~Oe~~|swivel-mounted<br>~~Oe~~|
|**type of lateral separation**<br>~~Oe~~|without<br>~~Oe~~|
|**General technical data**||
|**insulation material**|thermoplastic|
|**terminal contact spacing**<br>~~Oo~~|5.2 mm<br>~~Oo~~|
|operatingvoltage rated value<br>~~Oo~~|400 V<br>~~Oo~~|
|**Protection class**||
|**combustibility class according to UL 94**|V0|
|**Main circuit**<br>~~|~~||
|operational current rated value<br>~~|~~|20 A<br>~~|~~|
|**Appearance**<br>~~|~~||
|**color**<br>~~|~~|grey<br>~~|~~|
|**Product details**<br>~~|~~||
|**product component**<br>~~|~~|~~|~~|
|● test socket|Yes|
|**Number**<br>~~|~~||
|**number of terminal levels**<br>~~|~~|1<br>~~|~~|
|**number of terminal points per terminal level**|3|
|**Connections**<br>~~|~~||
|**connectable conductor cross-section solid**<br>~~|~~|~~|~~|
|● minimum|0.14 mm²|
|● maximum|4 mm²|
|**connectable conductor cross-section stranded**||
|● minimum|1.5 mm²|
|● maximum|2.5 mm²|
|**connectable conductor cross-section finely stranded**||
|● with core endprocessingminimum|0.14 mm²|
|● with core endprocessingmaximum|2.5 mm²|
|● without core endprocessingminimum|0.14 mm²|
|● without core endprocessingmaximum|4 mm²|
|**type of connection 1**<br>~~Oe~~|plug-in terminal connection<br>~~Oe~~|
|**type of connection 2**<br>~~Oe~~|plug-in terminal connection<br>~~Oe~~|
|**position of the terminal**<br>~~Oe~~|top<br>~~Oe~~|
|**Mechanical Design**||
|**height with lowest-profile installation**|73.73 mm|
|**depth**|36.5 mm|
|**length**|74 mm|
|**fastening method**<br>~~Oe~~|TH35 DIN rail<br>~~Oe~~|
|**Net Weight**<br>~~Oe~~|10g<br>~~Oe~~|
|material of the insulatingbody<br>~~Oe~~|Other<br>~~Oe~~|
|**Environmental conditions**||
|**ambient temperature during operation**||
|● minimum|-60 °C|
|● maximum<br>~~OO~~|-105 °C|
|**Approvals Certificates**<br>~~OO~~<br>~~—“C:isSCSC—i‘“CSNC(C(‘(]KNSCOis~~||



Subject to change without notice © Copyright Siemens

8WH60036AF00 Page 1/3

5/30/2026

**==> picture [510 x 363] intentionally omitted <==**

**----- Start of picture text -----**<br>
||||||
|---|---|---|---|---|
|Environment|General Product Approval|
|Environmental Con-|Confirmation|
|firmations|
|—|@G|»|FT|CE|
|other|
|Confirmation|—_|
|QC|PASS|
|e|Further information|e|
|Information on the packaging|
|https://support.industry.siemens.com/cs/ww/en/view/109813875|
|Information for data generation and storage|
|https://support.industry.siemens.com/cs/ww/en/view/109995012|
|Information- and Downloadcenter (Catalogs, Brochures,…)|
|https://www.siemens.com/lowvoltage/catalogs|
|Industry Mall (Online ordering system)|
|https://mall.industry.siemens.com/mall/en/en/Catalog/product?mlfb=8WH6003-6AF00|
|Service&Support (Manuals, Certificates, Characteristics, FAQs,...)|
|https://support.industry.siemens.com/cs/ww/en/ps/8WH6003-6AF00|
|Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)|
|https://www.automation.siemens.com/bilddb/cax_en.aspx?mlfb=8WH6003-6AF00|
|CAx-Online-Generator|
|https://www.siemens.com/cax|
|Tender specifications|
|https://www.siemens.com/specifications|
|Characteristic curves|
|https://curves.simaris.siemens.com/curves/<mmp_prod_noCOMP="HAUPT"></mmp_prod__no>|

**----- End of picture text -----**<br>


**last modified:** 10/18/2025

Subject to change without notice © Copyright Siemens

8WH60036AF00 Page 2/3

5/30/2026

Subject to change without notice © Copyright Siemens

8WH60036AF00 Page 3/3

5/30/2026
