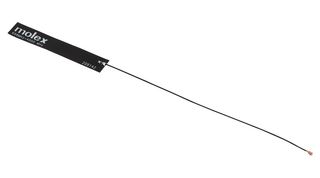

# RF Antenna, 3.3 to 3.8GHz, Cellular / LTE, 2.7dBi, 2W, Adhesive, Linear

![Product image](https://novapart.co/image/farnell:4231185/)

**URL**: https://novapart.co/products/209142-0180/rf-antenna-33-to-38ghz-cellular-lte-27dbi-2w
**SKU**: 209142-0180
**Manufacturer**: MOLEX / PARTNER STOCK
**Price**: €1.9800
**Stock**: 1000+

## Specifications

| Parameter | Value |
|---|---|
| Gain | 2.7dBi |
| Svhc | No SVHC (04-Feb-2026) |
| Vswr | - |
| Input Power | 2W |
| Antenna Type | Cellular / LTE |
| Frequency Max | 3.8GHz |
| Frequency Min | 3.3GHz |
| Product Range | 209142 |
| Input Impedance | 50ohm |
| Antenna Mounting | Adhesive |
| Antenna Polarisation | Linear |

## Datasheet

📄 [Download PDF](https://novapart.co/datasheet/farnell:4231185/)

## This document was generated on 07/23/2019 **PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION**

> **Part Number: 2091420180**

> **Status: Active**

**Overview:** LTE Cellular Antennas **Description:** 698MHz-4000MHz Flexible Antenna, 180.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors

## **Documents:**

Drawing (PDF) - Product Specification 2091420180 001 (PDF) - Application Specification 2091420180 000 (PDF)

- Packaging Specification 2091420180 001 (PDF) RoHS Certificate of Compliance (PDF) Product Literature (PDF) _Series image - Reference only_

## **General**

Product Family Antennas **EU ELV** Series 209142 **Not Relevant** Component Type Flexible Antenna with Cable Function Signal **EU RoHS China RoHS** Mates With 734120110 Microcoaxial RF, 50 Ohm **Compliant** Overview LTE Cellular Antennas **REACH SVHC** Product Literature Order No 987651-7811 Not Contained Per Product Name 698-4000MHz Flexible Antenna -ED/88/2018 (15 Protocol Cellular January 2019) Type Cellular Antenna **Halogen-Free** UPC 191130157549 **Status** | ~~—~~ **Low-Halogen Physical** For more information, please visit Contact US Cable Length 180.00mm Length 85.00mm China ROHS Green Image Mounting Style Adhesive ELV Not Relevant Net Weight 1.164/g RoHS Phthalates Not Contained Packaging Type PET Film Polarization Linear Radiation Pattern Omnidirectional **Search Parts in this Series** Thickness 0.10mm Width 14.50mm ~~Tl=~~ 209142 Series **Electrical** Band#1 F_End (MHz) 960 Band#1 F_Start (MHz) 698 Band#2 F_End (MHz) 2690 Band#2 F_Start (MHz) 1710 Band#3 F_End (MHz) 3800 Band#3 F_Start (MHz) 3300 Electrical Connectivity Cable Peak Gain (dBi) 1.2 @ 698 MHz, 2.7 @ 3300 MHz, 5.2 @ 1710 MHz Return Loss - S11 (dB) < -10, < -5 Total Efficiency >45% @ 698 MHz, >55% @ 1710 MHz, >55% @ 3300 MHz

## **Material Info**

**Reference - Drawing Numbers**

Application Specification 2091420180-000 Packaging Specification 2091420180-001 Product Specification 2091420180-001 Sales Drawing 2091420180-000

# This document was generated on 07/23/2019 **PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION**
